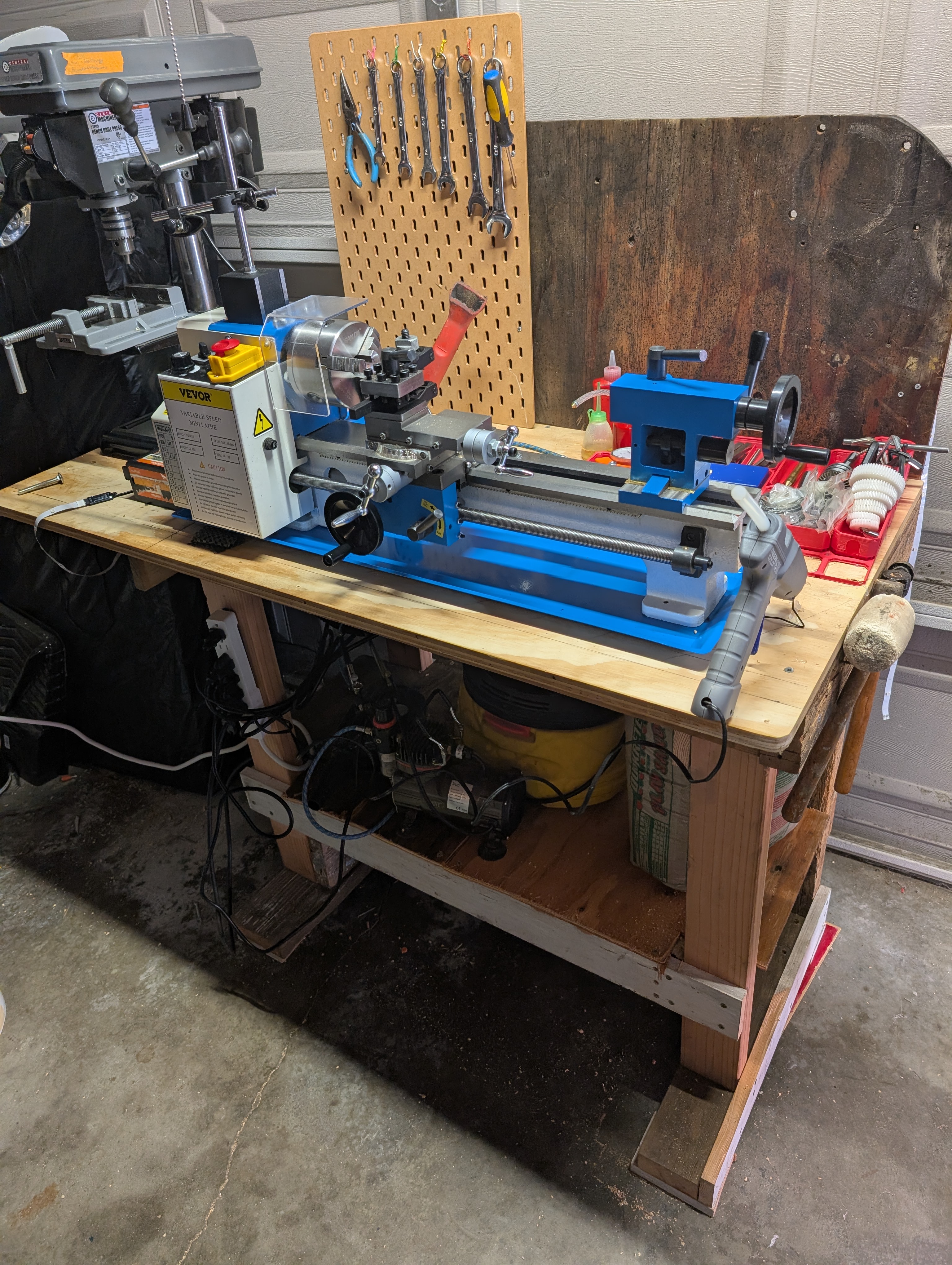

Workbench Improvement

project image
project image
project image
project image
project image
project image
project image

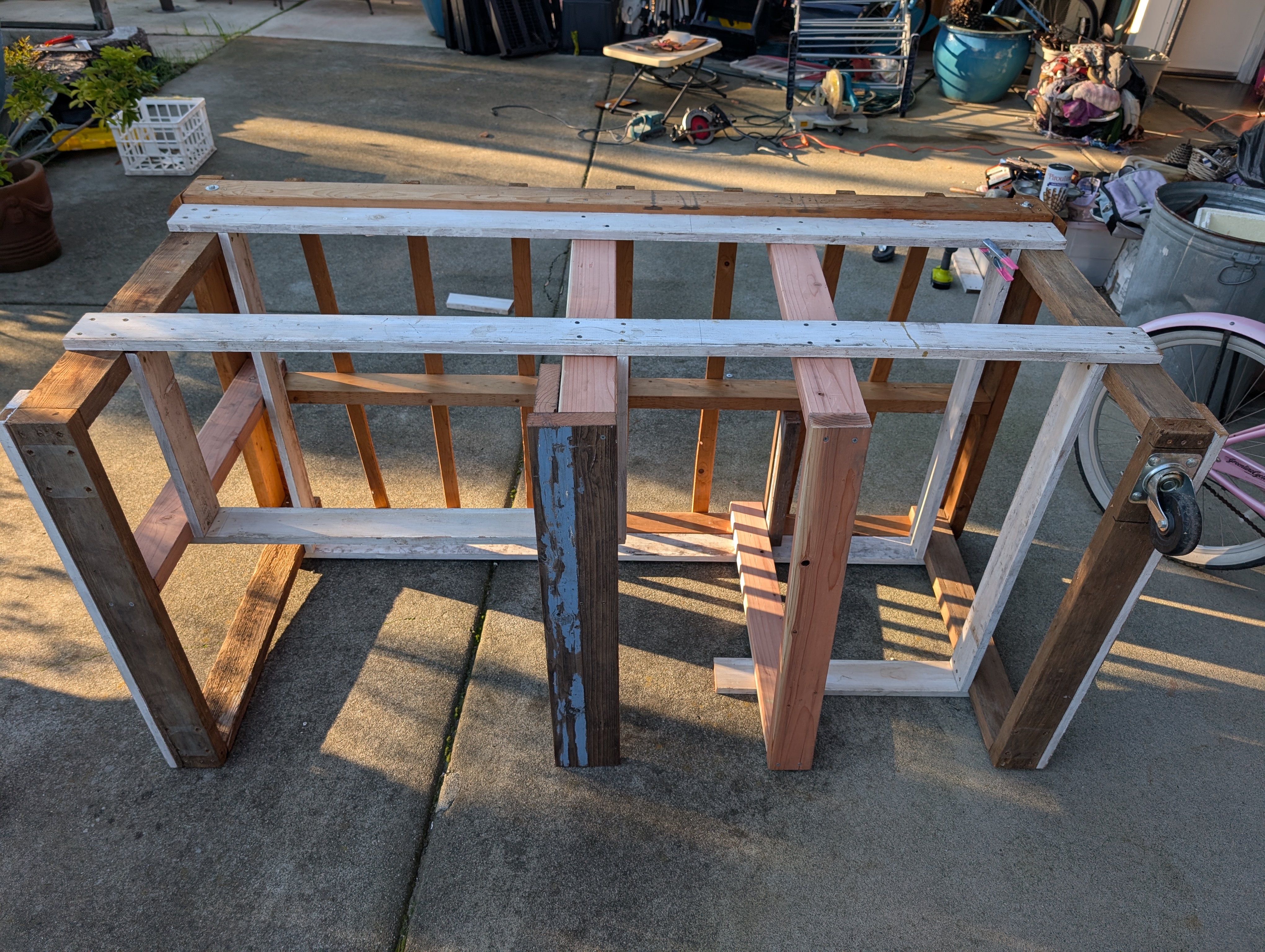

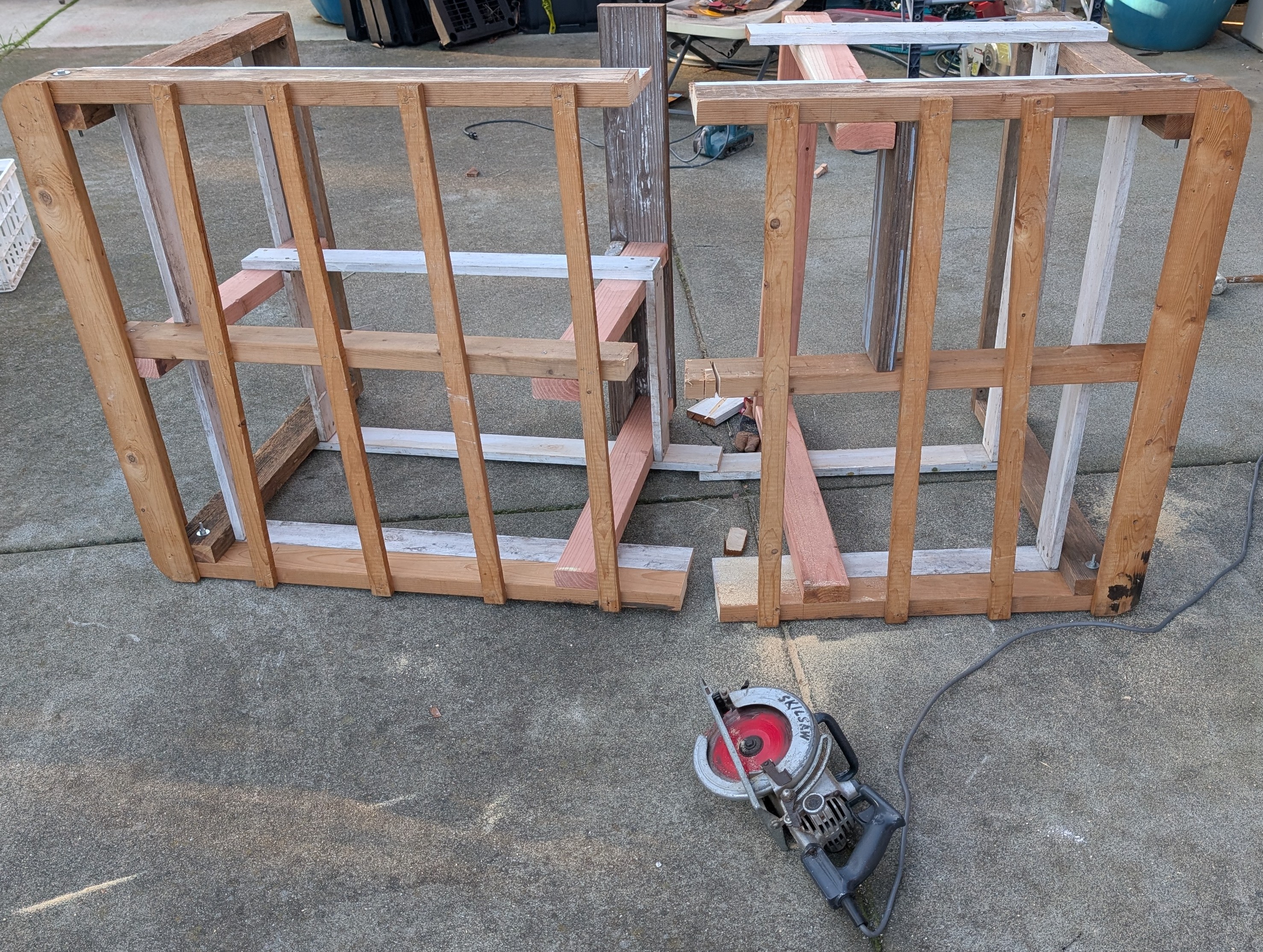

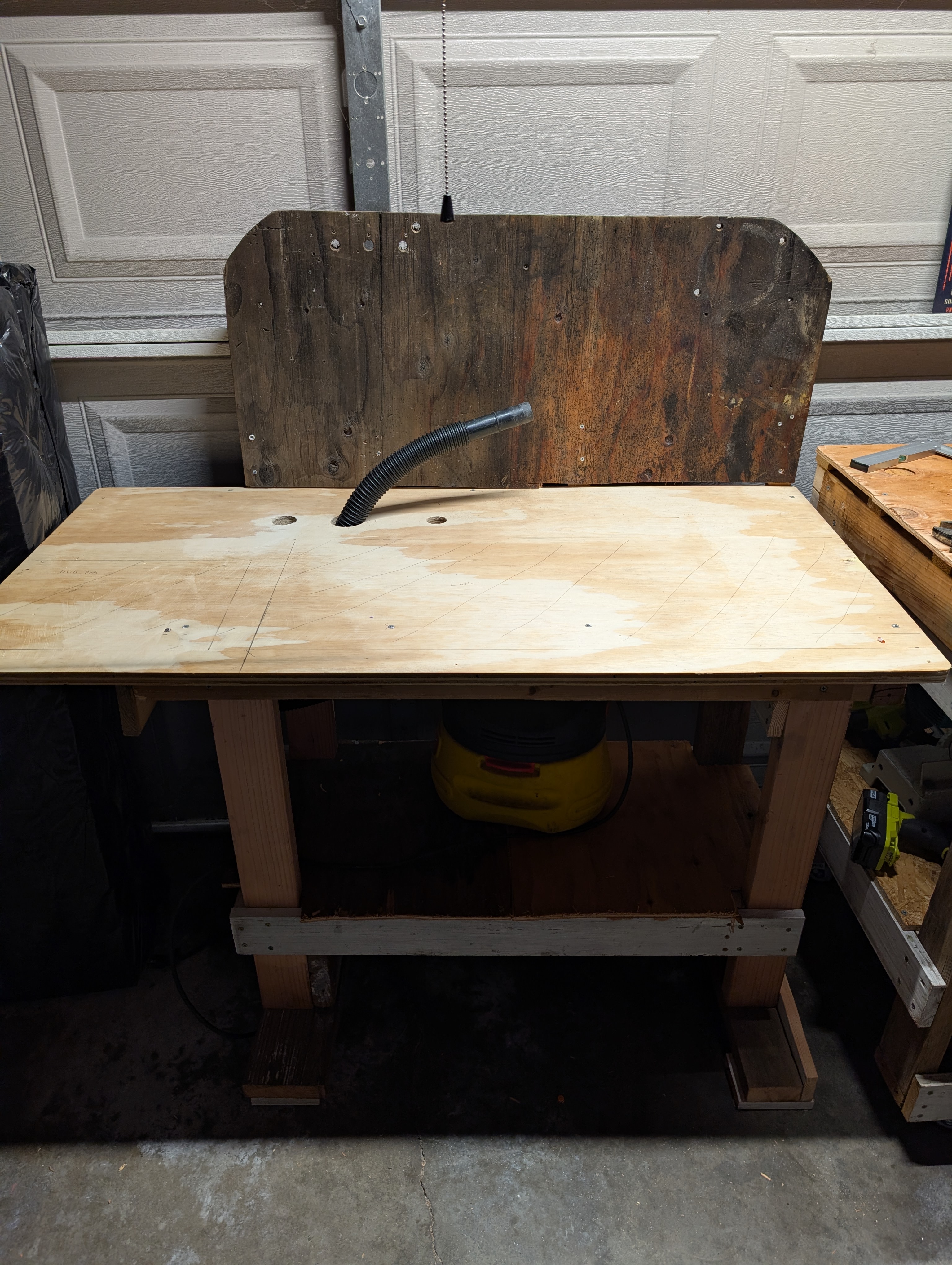

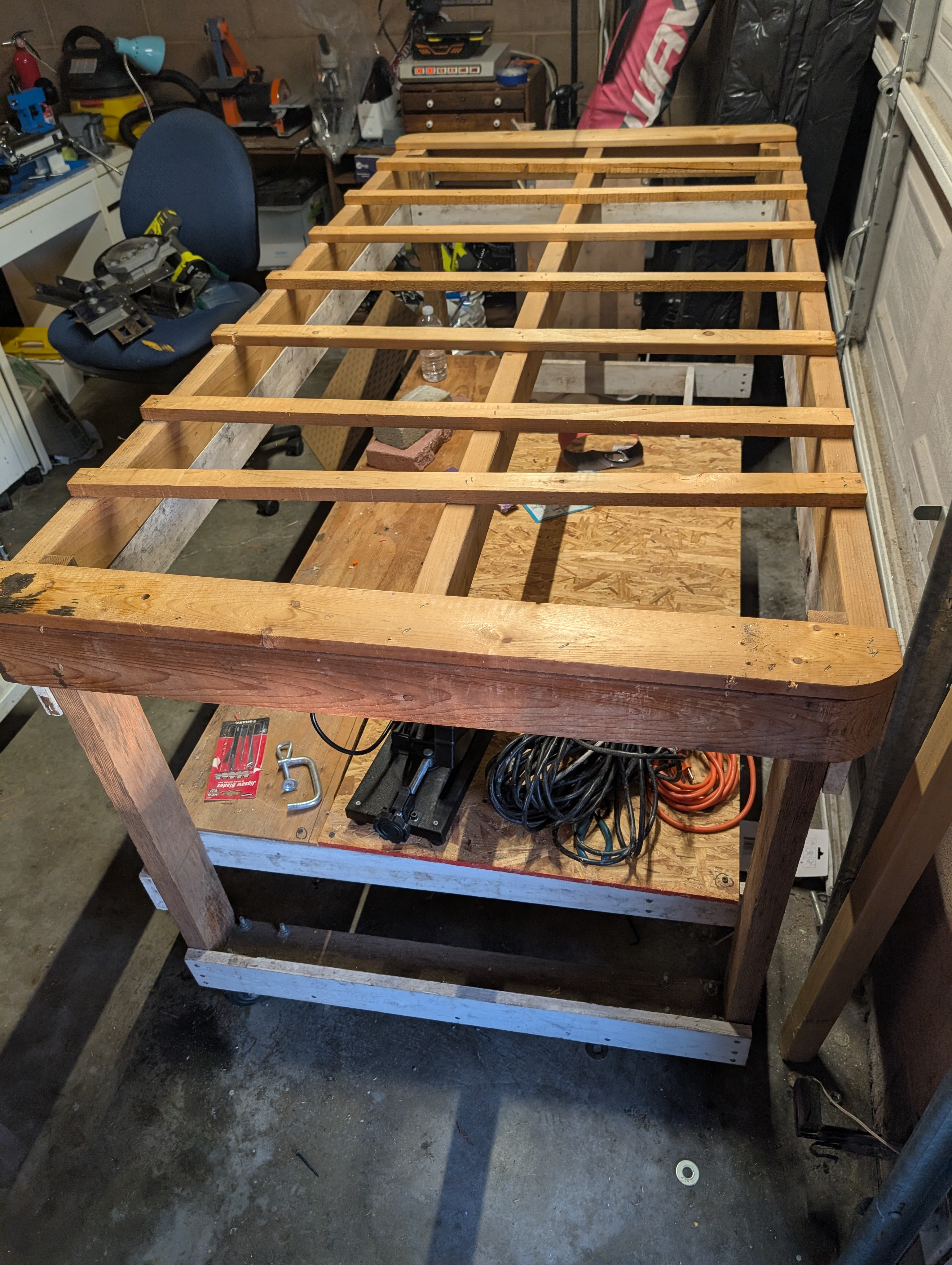

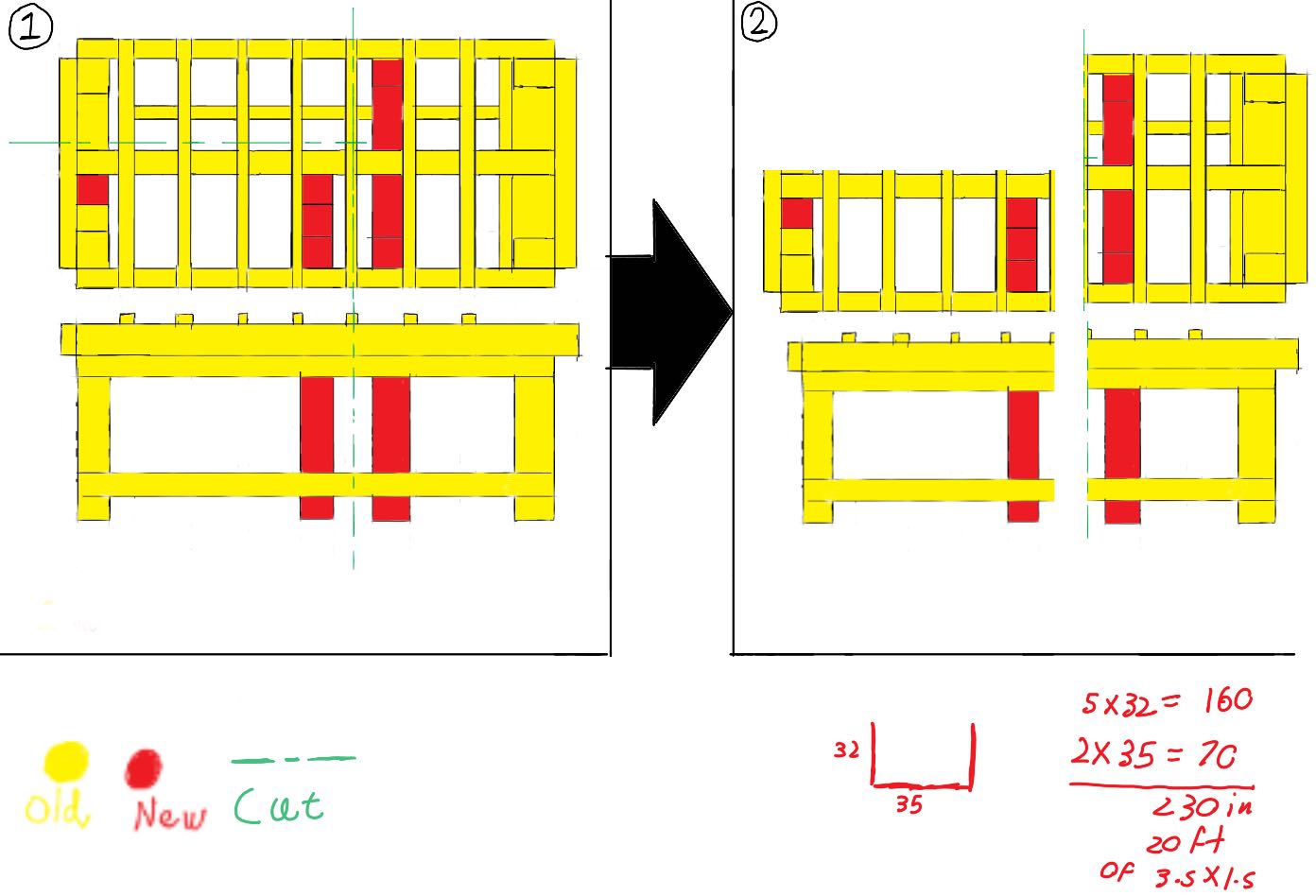

The creation of two benches from one bench to improve workflow

Improving Runout on Drill Press

project image
project image
project image
project image
project image
project image

Goal

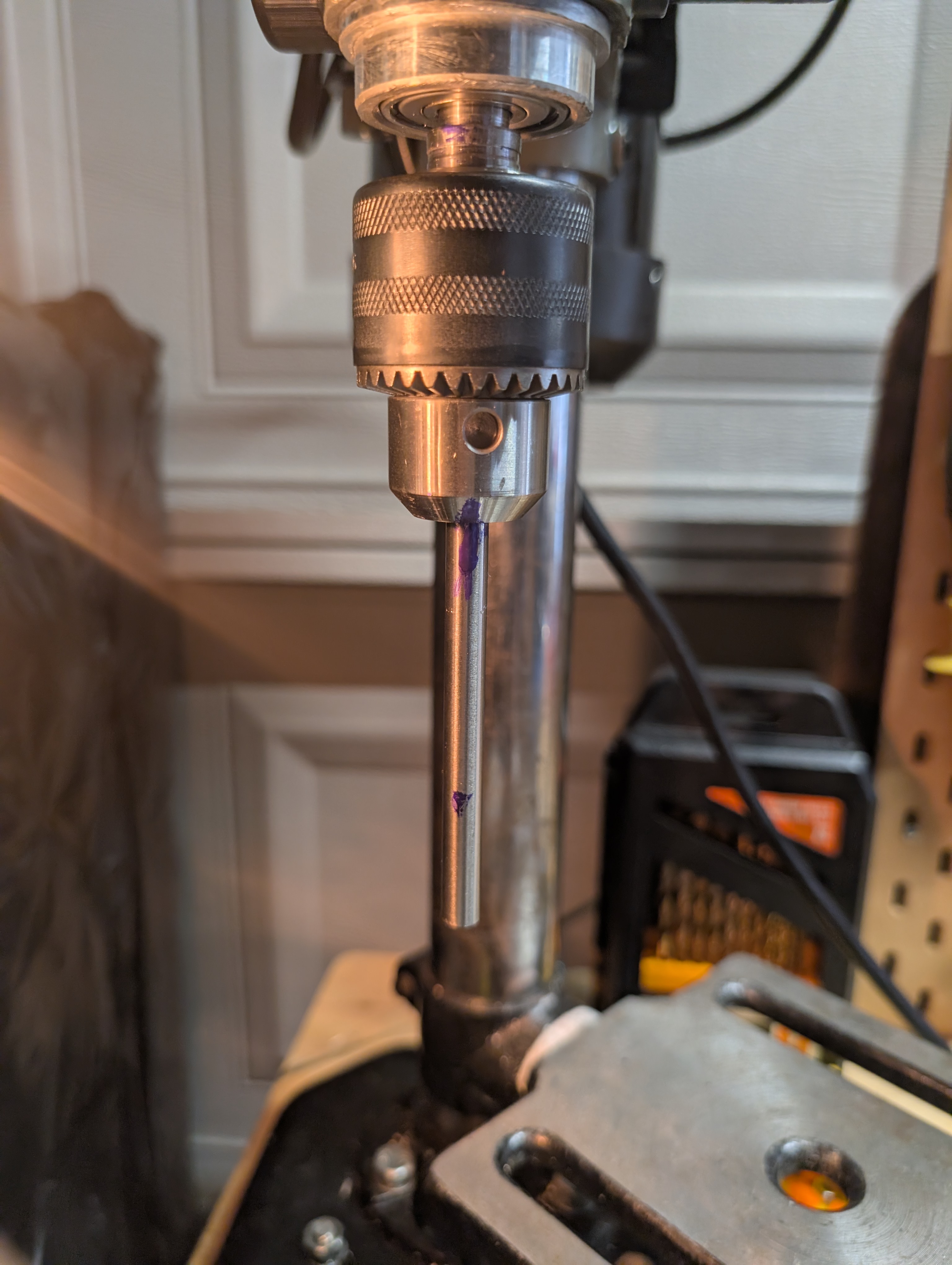

To improve drill press runout minimizing chatter and improving accuracy.

Procedure

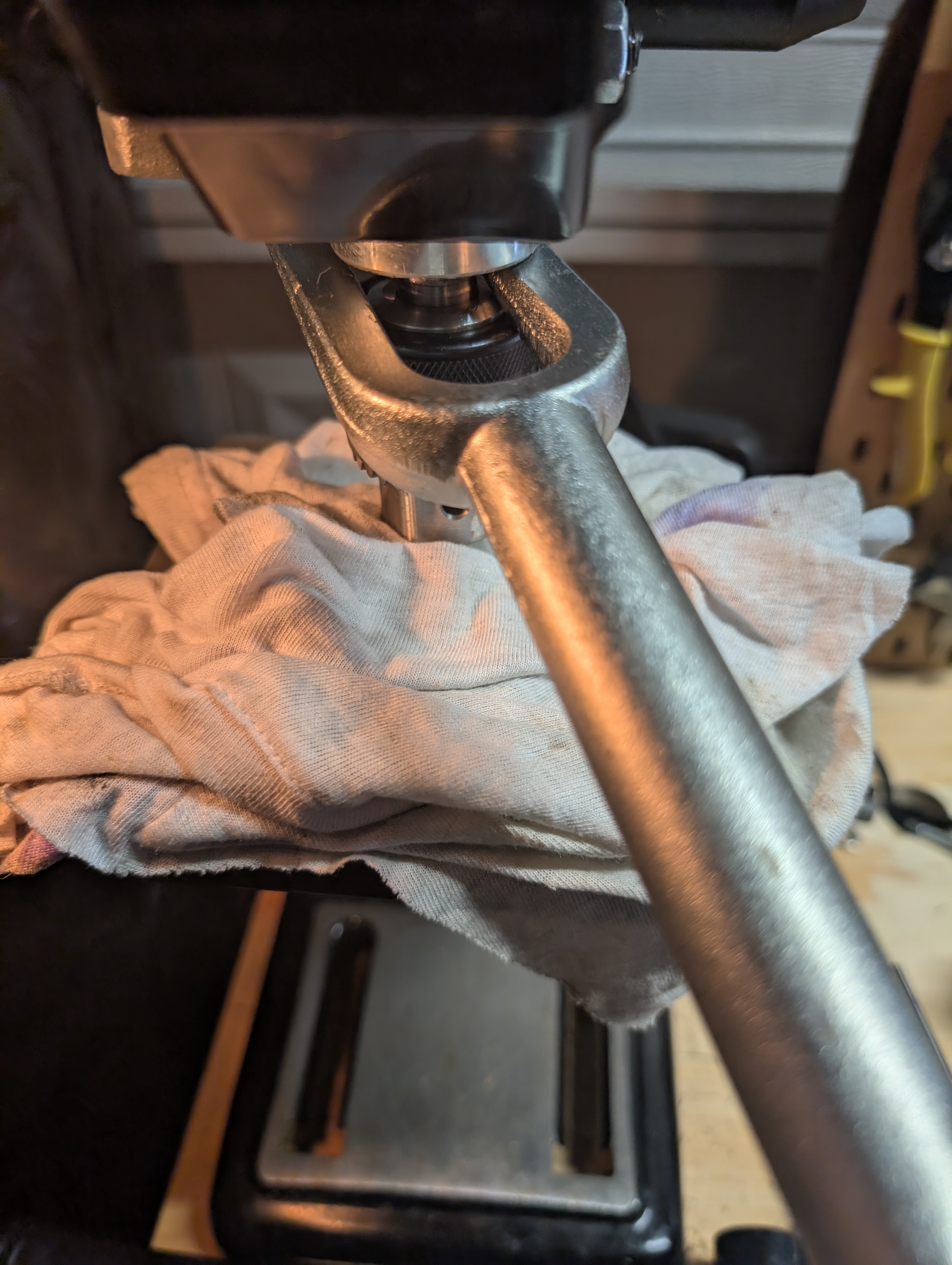

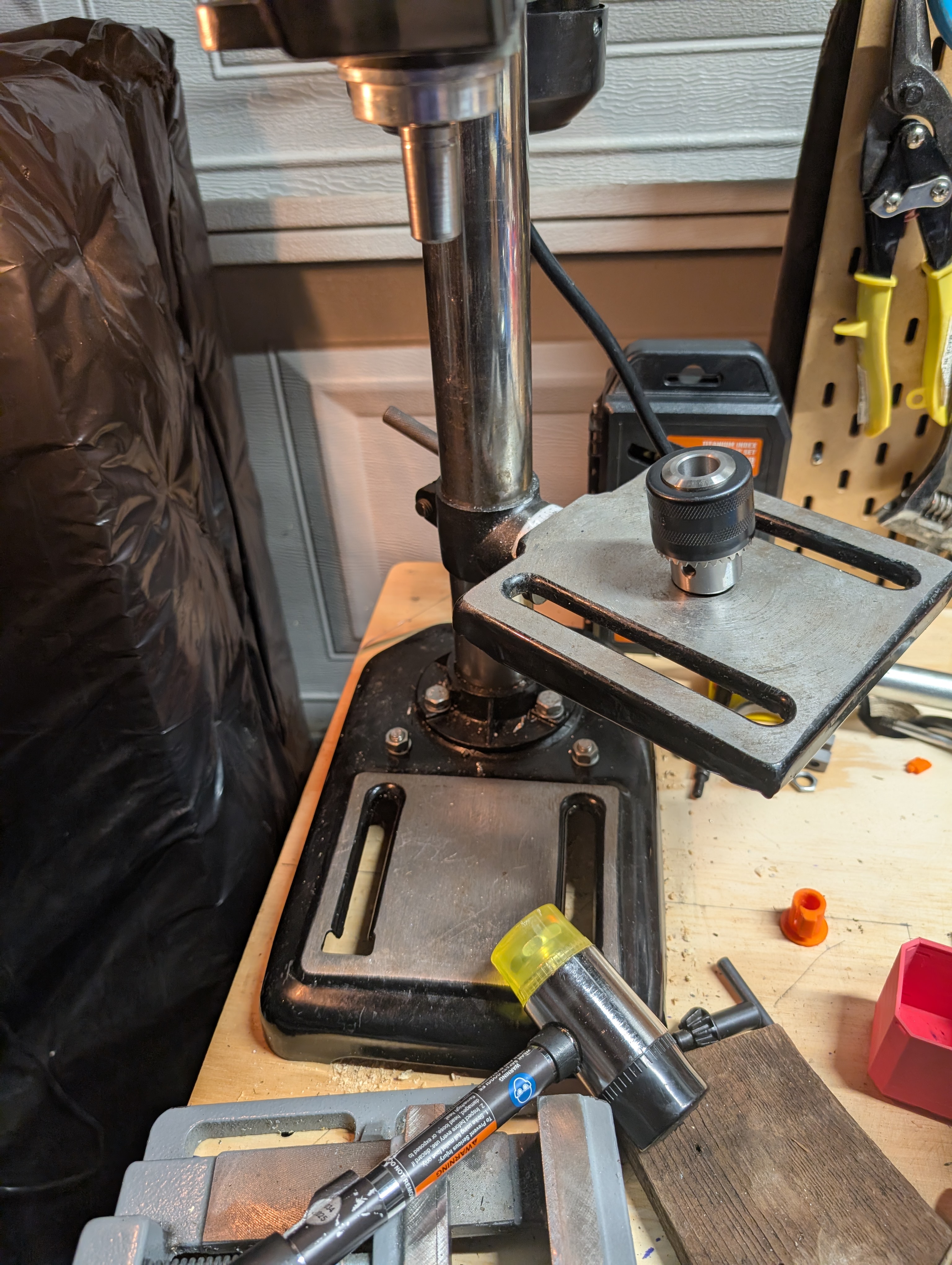

The chuck was removed with a pickle fork and mallet

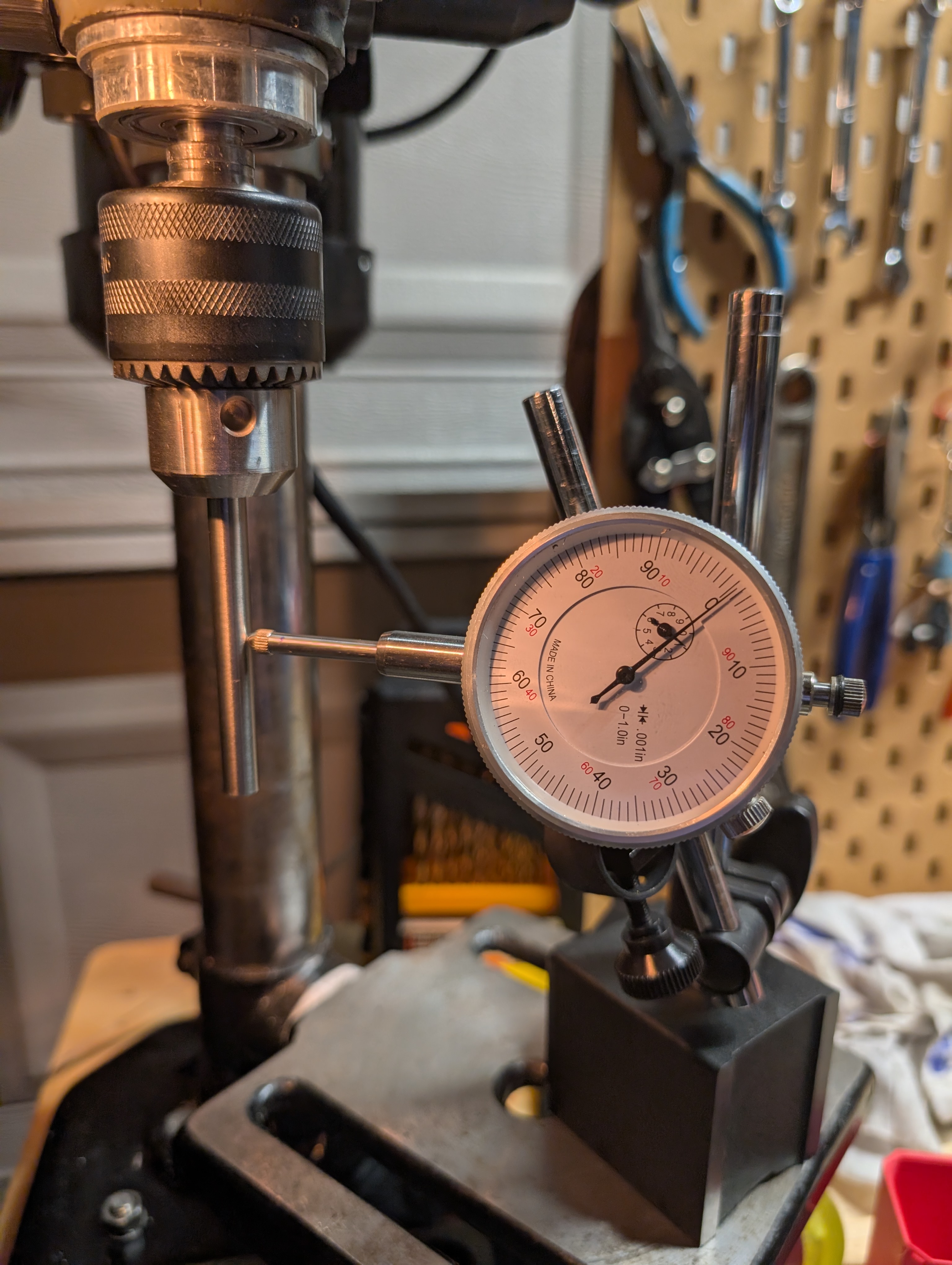

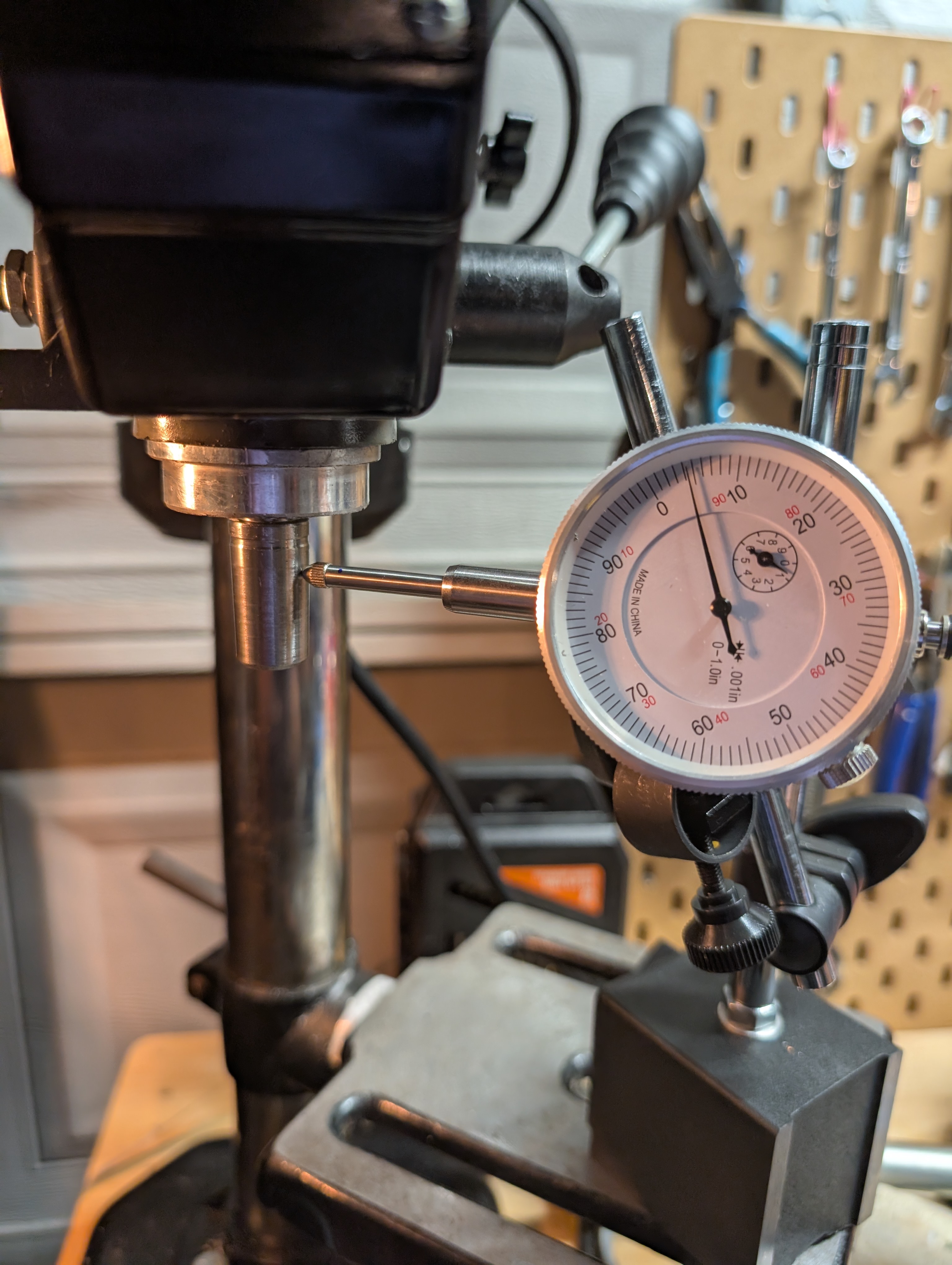

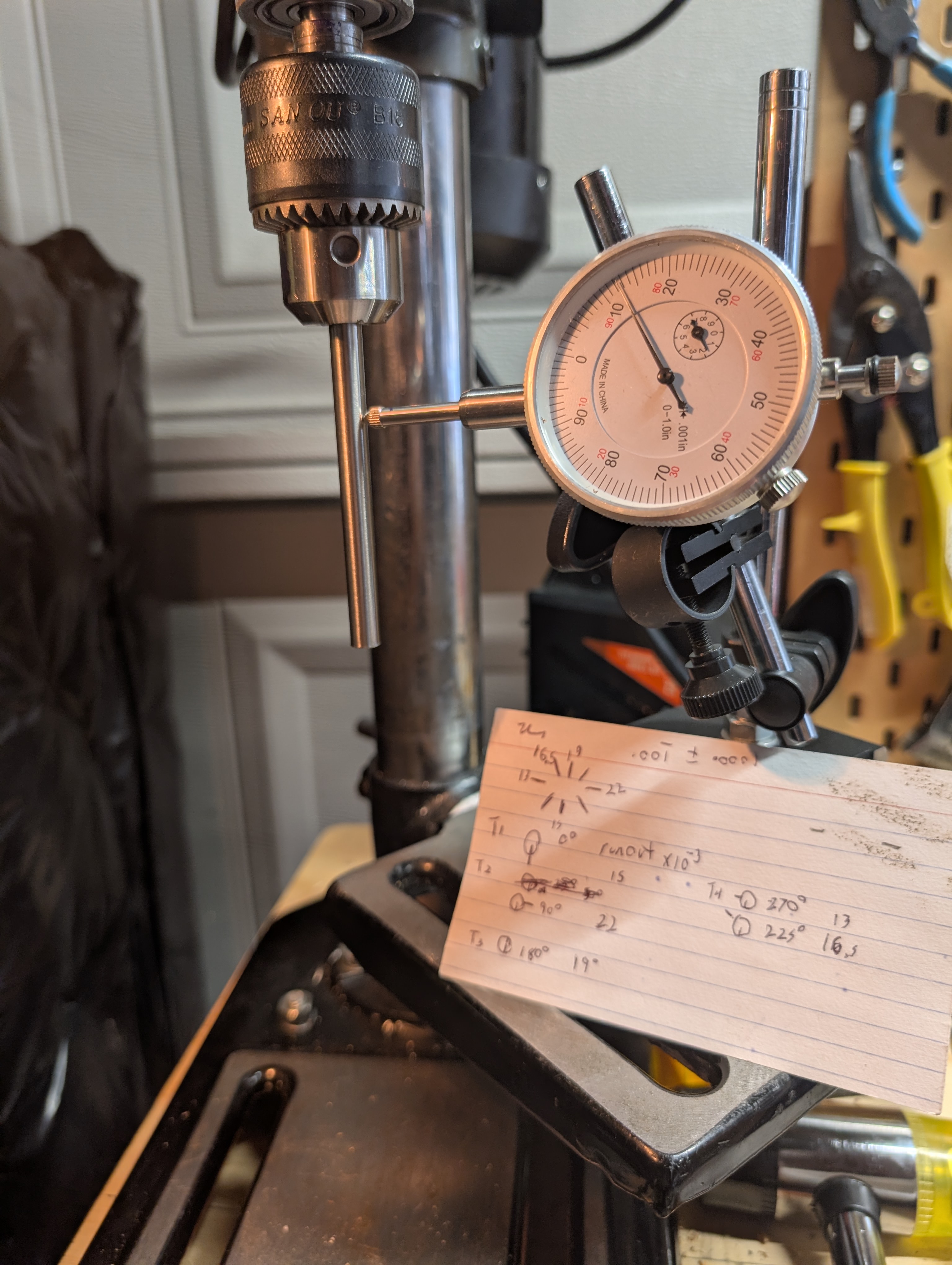

Trial Angle(degrees) Runout(x10^-3 in)
1 0 15
2 90 22
3 180 19
4 270 13
5 225 16.5
